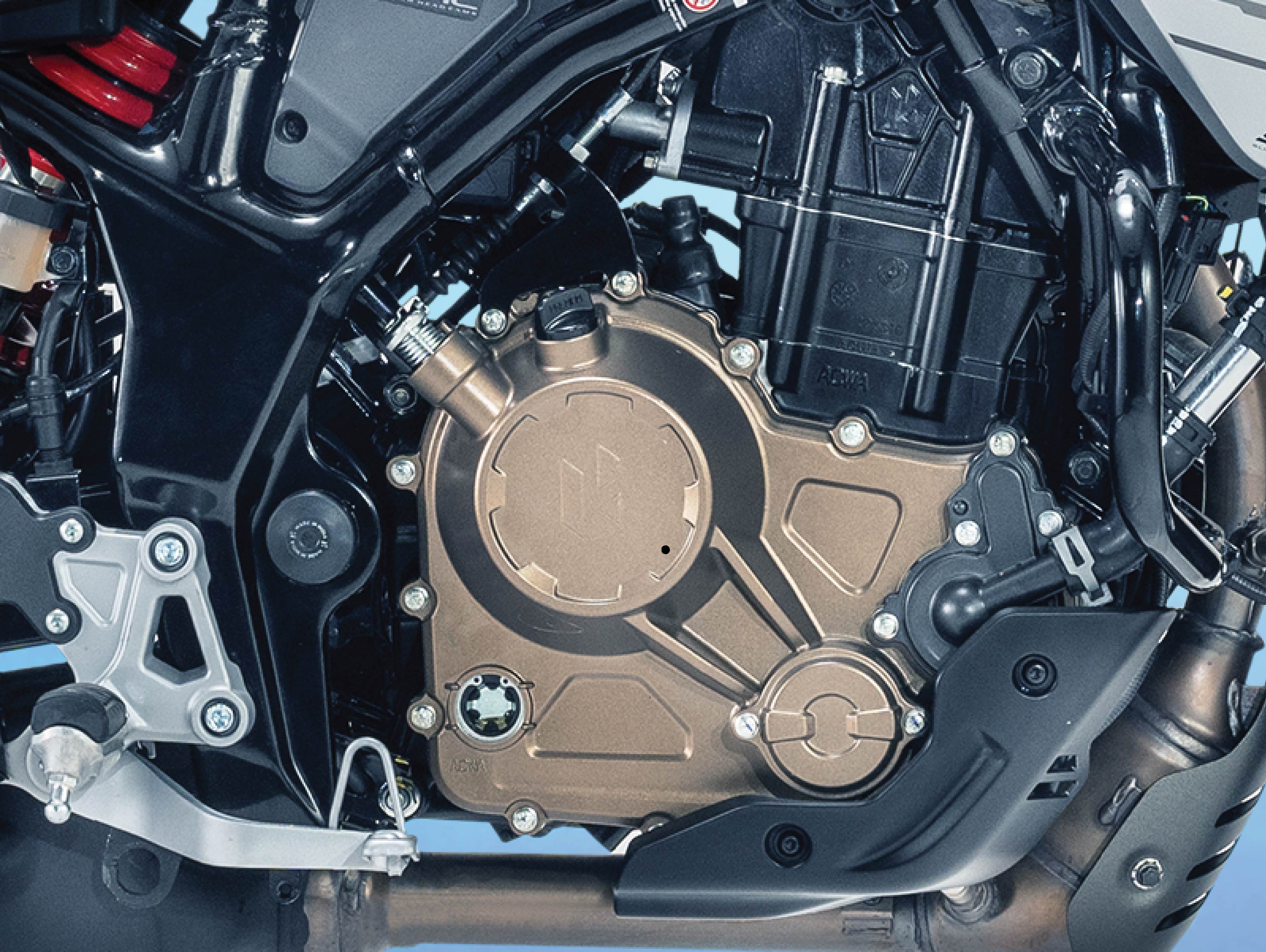

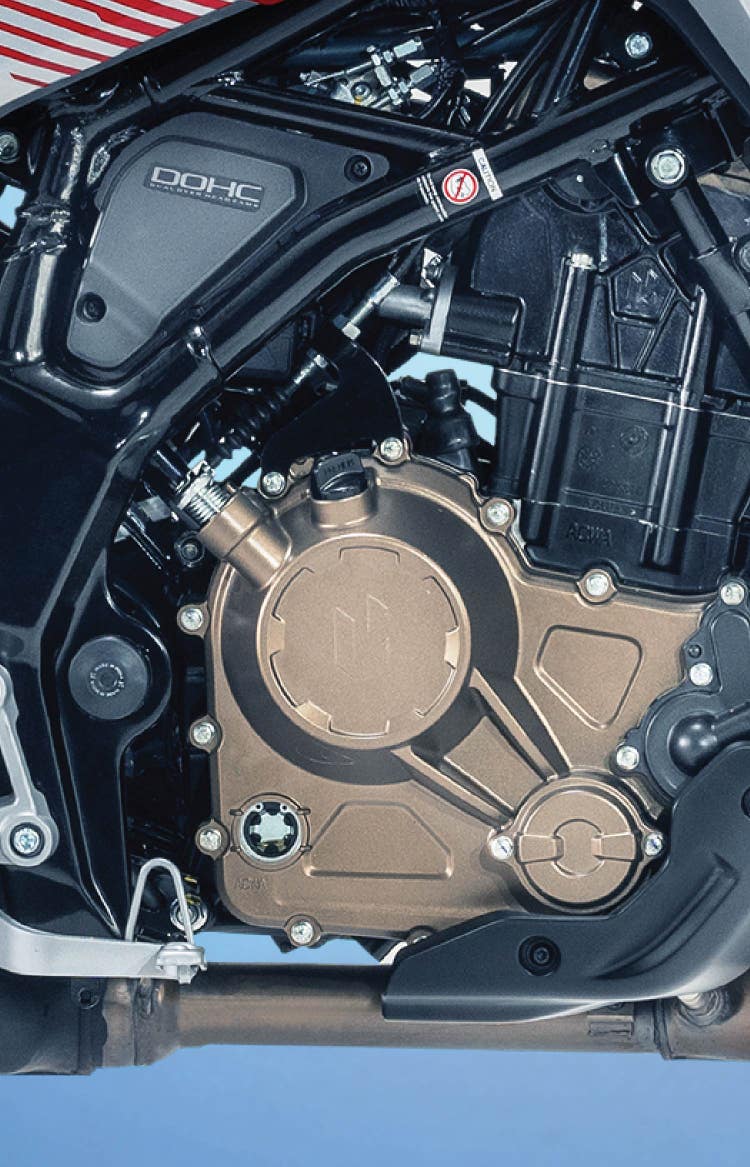

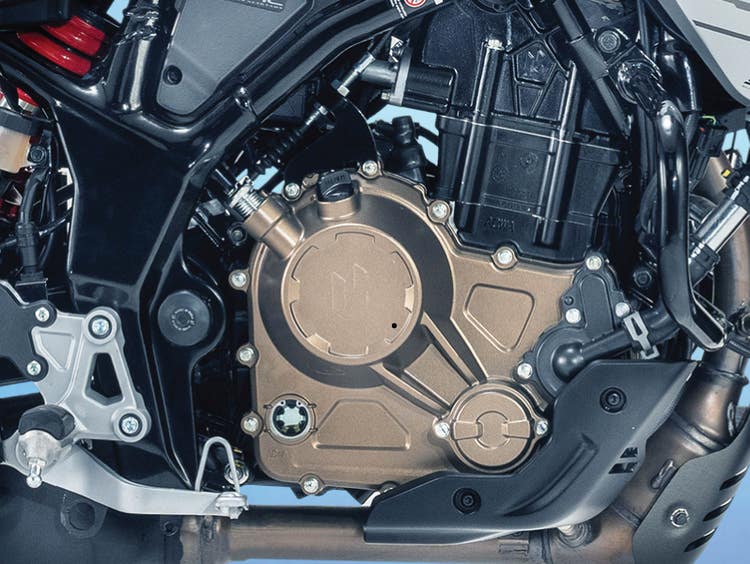

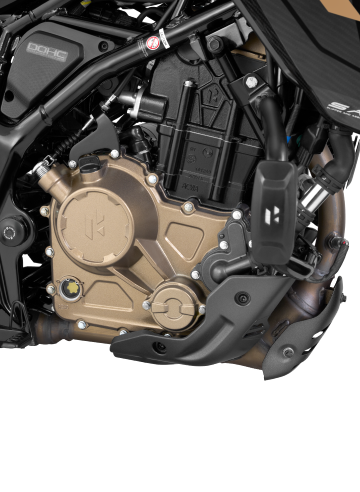

{ "Engine": { "Type": "Liquid cooled,4 stroke, single cylinder", "Cylinder arrangement": "Vertical Engine aligned 15 deg towards Front.", "Maximum power": "30 PS@9250 r/min", "Maximum torque": "25.3 N-m@7500 r/min", "Bore and stroke": "Ø73x59.5 mm", "Displacement": "250 cc", "Compression ratio": "12:01", "Valve train": "4V DOHC", "Engine oil capacity": "1700 ml at disassembly, 1600 ml at draining with oil filter replacement, 1500 ml at draining without oil filter replacement", "Lubrication system": "Forced lubrication", "Cooling system": "Water cooling, permanent circulation of coolant by water pump", "Oil pump type": "Duel- Gerotor (Scavenging & feed pump)", "Oil filtration": "Strainer (Wire mesh)", "Air filtration": "Dry,paper pleated type", "Cylinder compression pressure": "Decomp: 6±1.0 kgf/cm2, Normal:", "Intake valve Open": "5° (BTDC)", "Intake valve Close": "30° (ABDC)", "Exhaust valve Open": "39° (BBDC)", "Exhaust valve Close": "0° (ATDC)", "Valve clearance Intake": "0.10 mm ± 0.02", "Valve clearance Exhaust": "0.16 mm ± 0.02", "Idle speed": "1600 +/-100 min-1" }, "Drive train": { "Clutch system": "Wet-Type Assist & Slipper Clutch", "Transmission": "Manual 6 speed", "Primary reduction": "2.77", "Gear ratio 1st": "2.69", "Gear ratio 2nd": "1.94", "Gear ratio 3rd": "1.45", "Gear ratio 4th": "1.16", "Gear ratio 5th": "0.96", "Gear ratio 6th": "0.86", "Final reduction": "3.29", "Gearshift pattern": "Toe shift - 1(Down)-N-2-3-4-5-6(Up)" }, "Frame": { "Frame type": "Trellis Type", "Front suspension": "USD Front cushion", "Front cushion stroke": "120", "Rear suspension": "Rectangular swingarm with Frequency Selective Damping RSU", "Rear cushion stroke": "46.3", "Front tyre size": "110/70 -17 M/C 54H TL", "Rear tyre size": "150/60-17 M/C 66W TL", "Cold tyre pressure Rider only Front": "2.0 kg / cm² (29 psi)", "Cold tyre pressure Rider only Rear": "2.3 kg / cm² (33 psi)", "Cold tyre pressure Rider & Pillion Front": "2.0 kg / cm² (29 psi)", "Cold tyre pressure Rider & Pillion Rear": "2.3 kg / cm² (33 psi)", "Front brake Disc type": "Disc Dia. 320 mm", "Rear brake Disc type": "Disc Dia. 230 mm", "Fuel tank capacity": "11.5 litres", "Caster angle": "23.9°", "Trail length": "86.5 mm", "Fork oil grade": "1F", "Fork oil capacity": "464±3cc" }, "Dimensions": { "Overall length": "2023 mm", "Overall width": "828 mm", "Overall height": "1062 mm", "Wheelbase": "1357 mm", "Ground clearance": "167 mm", "Kerb weight": "168 kg", "Saddle height": "806 (Same as ACWA)" }, "Electrical System": { "Ignition system": "Transistor Control Ignition", "Alternator": "320 W @ 5000 RPM", "Battery capacity": "*MF Battery 12V- 8 Ah, ETZ-9", "Spark plug": "BOSCH-VR5NEU", "Spark plug gap": "1.0-1.1mm", "Fuse": "15Ax3 nos., 10Ax3 nos., 25Ax1 (Main fuse) & Spare Fuse - 15A, 10A & 25A" }, "Lamps": { "Headlamp": "LED headlamp (30V-24W/21V-17W/13.5V-21.3W)", "Position lamp": "13.5V-3.5W (LED)", "Tail/ Stop lamp": "7.5V-3.8/0.99W (LED)", "Turn signal lamp": "7.45V-1.05W x 4", "Meter illumination": "TFT", "Neutral indicator": "LED", "Turn signal indicator (RH+ LH)": "LED", "Hi beam indicator": "LED", "ABS indicator": "LED", "Programmed-Fi malfunction indicator lamp (MIL)": "LED", "Service reminder indicator": "TFT", "Side stand indicator": "LED", "Low Fuel Indicator": "LED", "Low Oil Pressure indicator": "LED", "Licence plate lamp": "6.5 V -0.4W" } }

theme-black

default

Compare

Variants

COMPARE

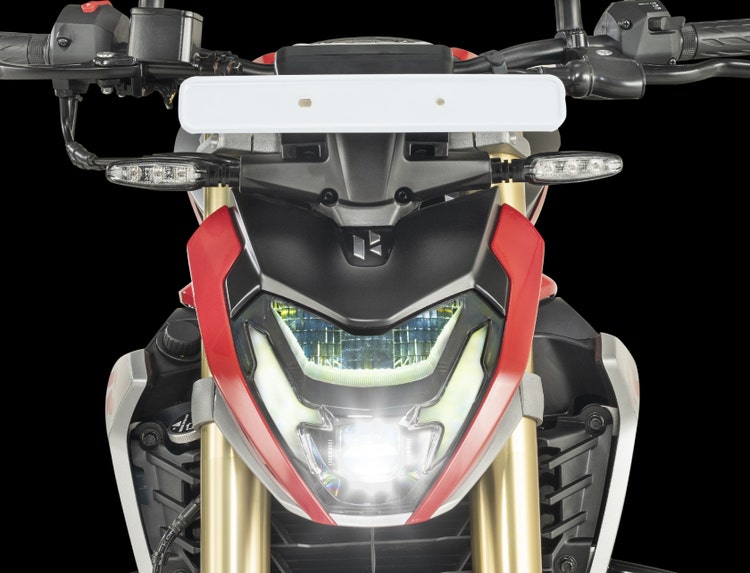

{ "Disc Variant": { "Brake type": "Disc-Drum", "Cruise Control": "Yes", "Panic Brake Alert": "Yes", "LED Tail lamp": "Yes", "LED Winkers": "Yes" }, "Drum Variant": { "Brake type": "Drum-Drum", "Cruise Control": "No", "Panic Brake Alert": "No", "LED Tail lamp": "No", "LED Winkers": "No" } }
